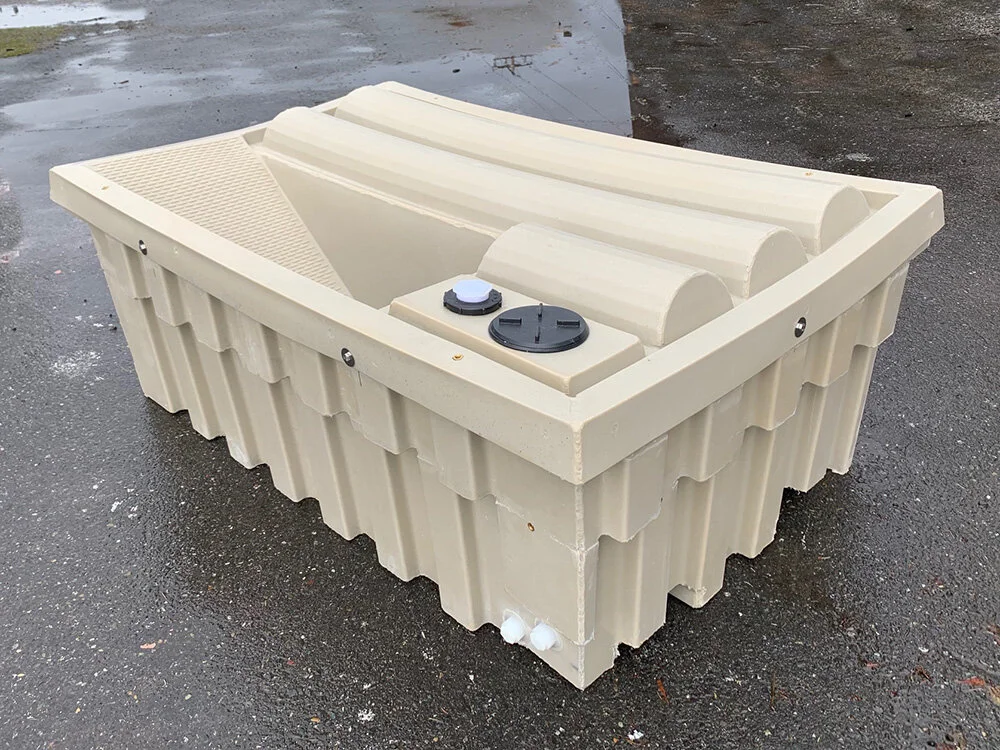

Heavy-Duty Ribbed Design
The DT-300's robust sidewall ribs make it ideal for free-standing installations in areas where excavation, especially in rocky terrain, is difficult. The drinking area is designed to accommodate a wide range of animals, from deer and bighorn sheep to smaller animals and upland birds. Consider adding a collection roof to maximize rainwater harvesting. For convenient filling from a water truck, a 2" fill port is included.

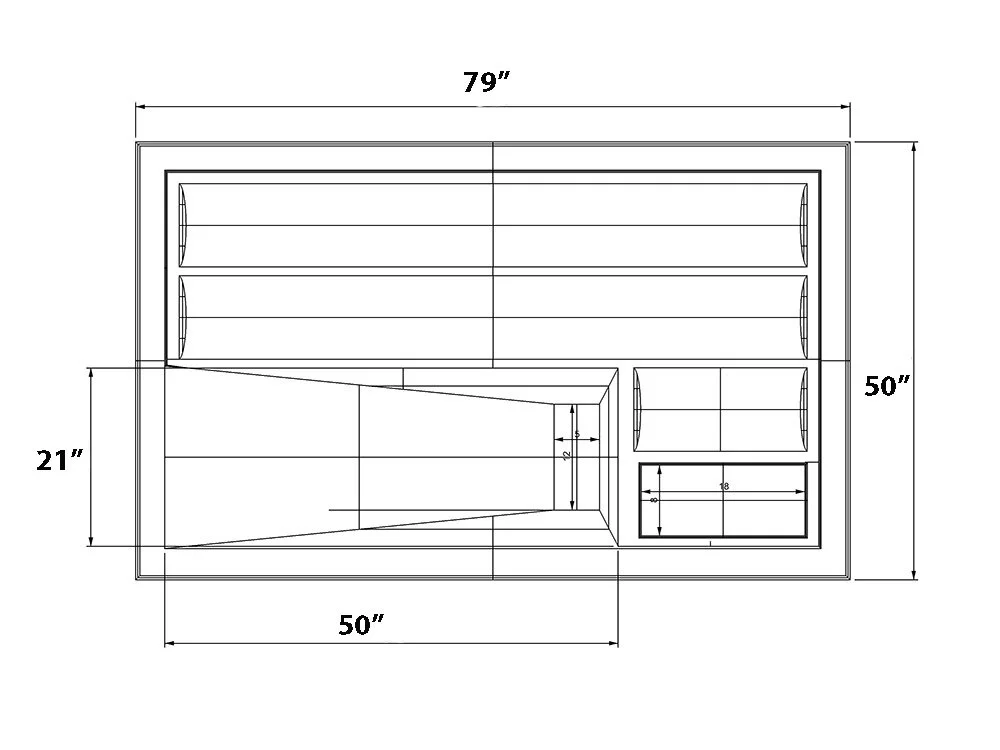

Dimensions. 79” x 50” x 28” (deck height)
Weight 160 lbs
A 28-degree Escape Ramp allows upland bird and small animals easy access in and out.
Durable LLDPE. Freeze resistant and UV tolerant polyethylene
300 gallon capacity.
7” Inspection Hatch and 2” Fill Port.
26 Sq ft Lid Collection Area
74% Lid Coverage, 26% Exposed Water Area
A bolt-down lid, held into place with four, 3/8” bolts
Drinking area 21 x 50 x 26”
Heavy-Duty Sidewall Ribs
Includes a 1/2” drain plug on sidewall to easily lower water level in locations with hard winter freezes
Above-Ground or In-Ground installation.
Dome-Top Design with ribs to withstand snow loads.
66 sq feet of collection surface area on the lid. (additional collection area may be needed depending on your rain zone)
The DT-300 is engineered with an aggressive sidewall rib pattern for stiffness. The domes on the lid provide strength to handle snow and discourage curious animals from walking on the lid.
The LLDPE* used to produce the guzzler is freeze and UV-tolerant. It is also food-grade rated and recyclable. *Linear Low Density Polyethene
