Drinkers & Troughs
Includes Float Valve

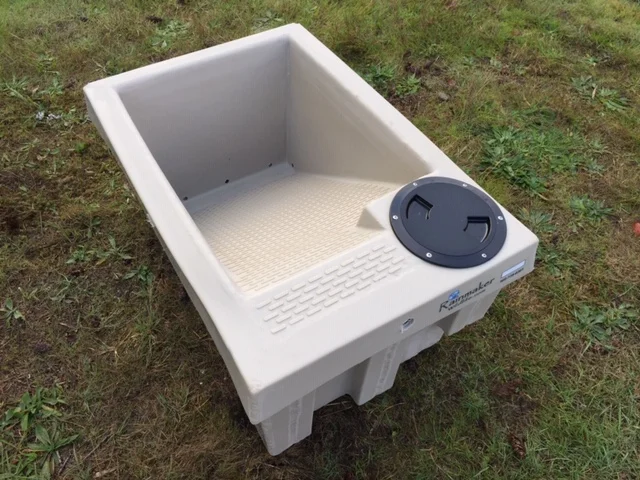

Mini Drinker II
Best for: Birds, Bees, Critters
The Mini Drinker is designed to make water available for small animals, birds, bees, and even the occasional deer. Perfect for residential or light ranch use. It’s simple to connect, compact and low maintenance. The internal float-valve is protected from the elements and curious animals.
Best Use: Small Critters, birds and Bees
Size 21" x 15" x 6" . Capacity 2 Gallons. Weight 8 lbs. Includes Float-Valve
Will hookup to a water line or storage tank. See Simple Storage Tank Setup
ABOVE-GROUND OR IN-GROUND DRINKER
Best Use: Critters, Birds, and Occasional Deer
Dimensions 23" x 17" x 10" Capacity 8 Gallons. Weight 11 lbs. Includes Float-Valve
The Drinker-8 has all the same features as the larger Drinker-40. This compact unit has a capacity of 8 gallons and is perfect for deer, small animals, and birds.
Includes a 3/8” float valve that is protected under the lid and escape ramp. Easily connects to either a gravity-fed water storage tank or a pressurized water line. Best to use with water pressure between 5-60 psi.
Shipping: Individual units will ship by UPS. The rate is calculated in shopping cart. If you are ordering a large number of drinkers, please contact us for a quote to save you some money.
Drinker-8
Best for: Deer, Bird, Critters
This Drinker-8 incorporates the same quality, durable features used in our larger Drinker-110 and Drinker-40. Its smaller footprint makes it cost-effective and simple to install. Perfect for connecting to a simple gravity feed storage tank or a plumbed water line. Suitable for deer and all small animals. It has a 8-gallon capacity and includes an integrated float-valve system that is securely located under the escape ramp to protect it from light freezes and curious animals.
Drinker-40
Best for: Deer, Bird, Critters
This versatile drinker is smaller version of our popular Drinker-110. It has a 40 gallon capacity and includes an integrated float-valve system that is securely located under the escape ramp to protect it from light freezes and curious animals. Includes 8" inspection hatch.
ABOVE-GROUND OR IN-GROUND DRINKER
Best Use: Deer, Critters and Birds
Dimensions 35" x 23" x 16" Capacity 40 Gallons. Weight 40 lbs. Includes Float-Valve
This 40 gallon, medium size drinker is perfect for deer and small animals. It includes a durable 1/2” float-valve system located under the escape ramp giving it protection against light freezes and curious animals. Use the 1” threaded fitting to easily plug into your existing water source. A 1/2” brass hose fitting is included or you can connect to the 1” threaded fitting any way you prefer. Use this drinker with either a gravity feed or a pressurized water line. Can be installed in-the-ground or above-the-ground.
Shipping: Individual units ship by UPS. Rate are calculated in shopping cart. (lower 48 states). It is generally cheaper to ship multiple units by freight. Please contact us for a quote.
Above-Ground or In-Ground Drinker
Best Use: Elk, Deer, All Animals
Dimensions 54” x 30” x 20” Capacity 110 Gallons. Weight 85 Lbs. Includes Float-Valve
Ships by freight
Plugs Into Your Existing Water Source. Gravity or Pressure System
Measures 54″ x 30″ x 20″
1/2” Float-Valve System is Protected Under Ramp (included)
Float-valve rated up to 60 psi
Made of UV and Freeze-Tolerant Polyethylene
Built-in Escape Ramp for Critters
10” Access Hatch for Internal Inspection
Install In-Ground or Above-Ground
Weight: 85 Lbs
The unit measures 54″ x 30″ and is 20″ high, with a capacity of 110 gallons.
See the Trough-250 if you want a 250-gallon version of the Drinker 110.
Drinker-110
Best for: All Animals, Deer, Elk
The Drinker 110 can be installed in-ground or above ground. Ideal for deer, elk, upland bird and small animals. Connect to a water line and water level is maintained via the included float-valve. The access/escape ramp gives animals easy access to water and protects the float-valve from moderate freezing and curious animals.
For Wildlife, Domestic Animals & Bats. Includes Float-Valve
8 Ft Long x 34″ W x 22″ H
250 Gallon Tank
Built-In Escape Ramp
1/2” Float-Valve Protected Under Ramp
10″ Hatch for Easy Access
A Line-in and Drain Plug on Both Sides of Tank
Separate Top and Bottom. Multiple Units Nest for Shipping
Double Wall Construction
1/2” Sidewall Drain Plug to Lower Water Level in Winter
Weight 160 lbs
Trough-250
Best for: Deer, Elk, Domestic Animals, and Bats
Connect this 8 ft trough to your existing plumbed water system, stock tank, or water collection system and provide additional access to water for wildlife, including larger animals such as deer and elk. Can be used for wildlife or domestic animals. Large enough runway for bats. Float-Valve is included and is protected under the escape ramp.
Drinker-310 Large Capacity
Best Use: All Animals. Scalable Capacity System
The Drinker-310 is a walk-in style drinker that draws off a storage tank. Can be used with a float-valve or as part of a "equilibrium system" without a float-valve. Sturdy, reinforced steps and ramp will accommodate elk, deer, bighorn sheep, as well as critters.
This drinker can be installed above-ground or in-ground. A heavy-duty galvanized belly frame provides extra stiffness.
The Drinker-310 is a walk-in style drinker that draws off a storage tank. Scalable capacity. For all large and small animals.
Reinforced Traction Steps
Aggressive Sidewall Ribs
Galvanized Steel Strut Frame
Built-In Escape Ramp
1/2” Sidewall Drain Plug to Easily Draw Down to Winter Water Level
SPECIFICATIONS:
Weight 220 Lbs
Capacity 310 Gallons
Use With Float-Valve or With an Equilibrium System
80" x 46" x 26" Deep
Install In-Ground or Above Ground
Walk-In Drinker - Large Capacity
This walk-in style drinker is designed to be used with large capacity storage tanks and collection roof system to create a 5,000 - 20,000 gallon system. All large and small animals can access water via steps or ramp. Approx. 5 ft x 8 ft and 4 feet deep.
Specifications
Drinker Capacity: 350 Gallons
3″ Water Line-in Bulkhead Fitting
Material: Thick Wall, Durable Polyethylene
Construction: Double Wall Uni-body
Partially Filled with 2 lb Structural Foam
Internal Steel Tubing Stiffening Stringers
Weight: approx 575 Lbs.
Dimensions: L 92″ x W 58″ x H 44″
Steps Ready to Accept Common 12″ x 12″ Cement Pavers. (not included)
Built-in Access & Escape Ramp. 32 Degrees
Forklift Slots & Lifting Rings
