DT-650 New for March 2026

$2,095.00

Best Use: Deer, Elk, Bird, and Small Animals

The DT-650 guzzler is a new larger capacity, 650 gallon water source that can be installed above-ground, without excavation, or in-ground.

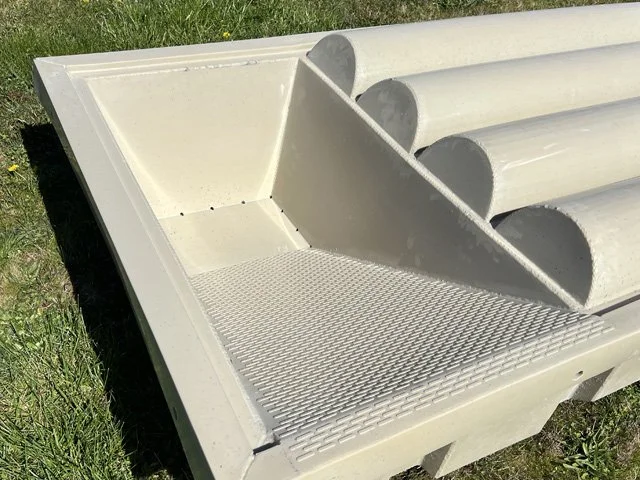

The drinking area measures 28” x 50” and is sized to accommodate the racks of larger deer or elk.  A deck height of 22” allows larger animals to easily drink over the edge. Built-in escape ramp.

Best Use: Deer, Elk, Bird, and Small Animals

The DT-650 guzzler is a new larger capacity, 650 gallon water source that can be installed above-ground, without excavation, or in-ground.

The drinking area measures 28” x 50” and is sized to accommodate the racks of larger deer or elk.  A deck height of 22” allows larger animals to easily drink over the edge. Built-in escape ramp.

Best Use: Deer, Upland Bird, and Small Animals.

  • Built-In, 28 degrees escape ramp.

  • Large drinking area accommodates deer and elk racks

  • Gravity Feed System. No float valves required.

  • Above-ground or In-ground installation

  • Durable polyethylene construction

  • Internal column for extra lid strength

  • Includes “1 Drain Fitting and 1” Line-In Fitting

  • Bolt-down lid, held into place with four, 3/8” bolts

  • Includes a 1”, “Winter Water Level” drain plug on side-wall to easily lower water level for locations with hard winter freezes

  • 2" bulkhead fitting for fast manual filling

  • 10” Inspection hatch

  • Color Sand Granite






SPECIFICATIONS:

  • Weight 300 Lbs

  • Dimensions 120" x 64" x 22" (deck height)

  • Surface area of 53 sq ft. (33 Gallons per 1" rain)

  • Capacity 650 Gallons

  • Lid covers 80%. Exposed water area is 20% (pertains to evaporation)

  • Escape ramp slope 28 degrees

The new DT-650 guzzler provides a 650 gallon, above-ground water source for animals at a 22" height.

The drinking area measures 28" x 50 and is 19" deep. The deck height is 22”. Deer and elk with larger racks can easily drink over the edge. Smaller animals can use the built-in access ramp to access water.  80% of the tank remains covered to minimize evaporation and keep the water clean.

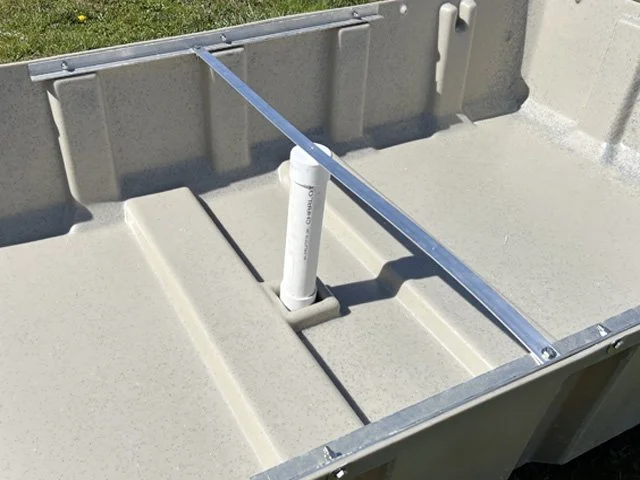

Four integrated domes collect and channel rainwater into the 650-gallon reservoir below. The four dome lid is supported from beneath by PVC column to ensure structural rigidity.  6 bolts lock lid into place.

The 53 sq ft surface area will collect rain at a rate 33 gallons per one inch of rain.  To increase the rain collection surface area, add a collection roof. To see roof plans, go to Support>Collection Roof Plans.  You always have the option to hand fill.  This gravity-feed system is very durable, is freeze tolerant and requires no-float valves.  Reduce the water level during long periods of hard freezes.

  • Fits conveniently in the bed of a standard pickup. Multiple units nest together to reduce shipping costs.  Includes a 1" drain fitting and 1” line-in fitting.
