Dome-Top 645 IG Guzzler

$1,599.00

Best Use: Elk, Deer, Bird, and All Animals

Dome-Top 645 IG (In-Ground) Wildlife Water Guzzler

The DT-645 IG is purpose-built for in-ground installation, delivering all the premium features of our flagship DT-650 above-ground model — but at a lighter weight and more affordable price.

When installing the DT-645 IG in the ground, the surrounding soil naturally supports the sidewalls. This allows for a lighter 60-pound design with thinner, more efficient polyethylene walls compared to the heavy duty, self-supporting shell required for the DT-650’s above-ground application. The result is a cost savings while still maintaining the durability and performance.

The DT-645 IG includes the all the important features such as the internal center support column, lateral aluminum frame, 50” wide drinking area for large racked animals, and dome top construction.

Landowners and conservation professionals often prefer ground-level water access for wildlife. The DT-645 IG is the ideal, economical solution for these scenarios — providing reliable, high-capacity water storage in remote locations while reducing shipping and installation expenses.

Key Benefits:

•  60 lbs lighter than the DT-650

•  Lower purchase price and reduced shipping costs

•  same features as the heavy-duty DT-650 (dome top, center column support, internal aluminum frame, wide ramp, etc.

•  Perfect for ground-level watering of deer, elk, birds, and other wildlife

Whether you’re managing a large ranch, habitat restoration project, or remote hunting property, the DT-645 IG offers the same proven reliability as our top-selling DT-650 — just optimized for in-ground use.

Best Use: Elk, Deer, Bird, and All Animals

Dome-Top 645 IG (In-Ground) Wildlife Water Guzzler

The DT-645 IG is purpose-built for in-ground installation, delivering all the premium features of our flagship DT-650 above-ground model — but at a lighter weight and more affordable price.

When installing the DT-645 IG in the ground, the surrounding soil naturally supports the sidewalls. This allows for a lighter 60-pound design with thinner, more efficient polyethylene walls compared to the heavy duty, self-supporting shell required for the DT-650’s above-ground application. The result is a cost savings while still maintaining the durability and performance.

The DT-645 IG includes the all the important features such as the internal center support column, lateral aluminum frame, 50” wide drinking area for large racked animals, and dome top construction.

Landowners and conservation professionals often prefer ground-level water access for wildlife. The DT-645 IG is the ideal, economical solution for these scenarios — providing reliable, high-capacity water storage in remote locations while reducing shipping and installation expenses.

Key Benefits:

•  60 lbs lighter than the DT-650

•  Lower purchase price and reduced shipping costs

•  same features as the heavy-duty DT-650 (dome top, center column support, internal aluminum frame, wide ramp, etc.

•  Perfect for ground-level watering of deer, elk, birds, and other wildlife

Whether you’re managing a large ranch, habitat restoration project, or remote hunting property, the DT-645 IG offers the same proven reliability as our top-selling DT-650 — just optimized for in-ground use.

Best Use: Deer, Upland Bird, and Small Animals.

  • 645-gallon water capacity

  • Designed for in-ground installation

  • Lightweight design for a lower cost

  • Durable, UV-resistant polyethylene construction

  • Low-profile dome helps protect stored water

  • Ideal for wildlife habitat improvement and remote water developments

  • Proudly made in the USA

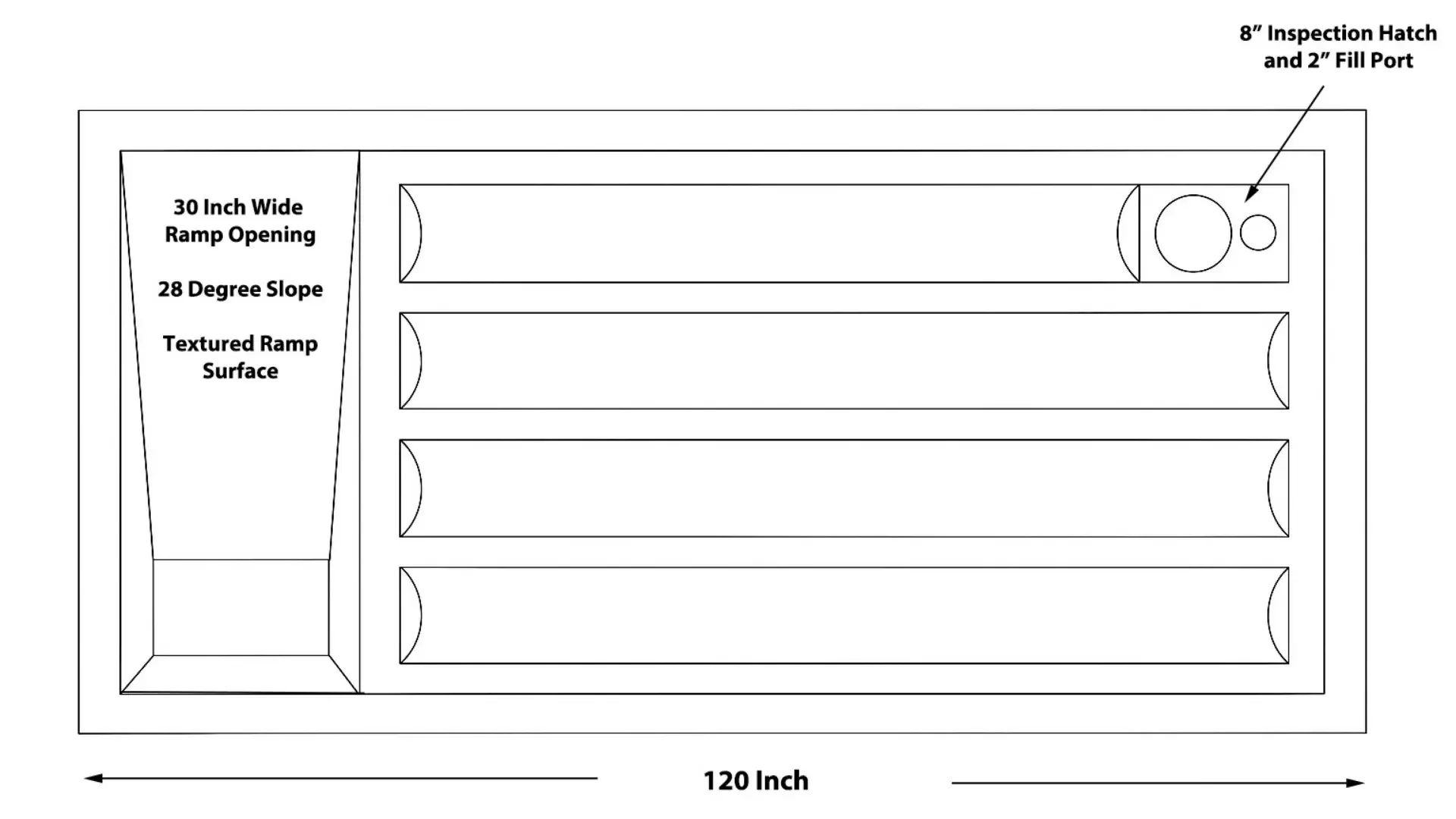

SPECIFICATIONS:

  • Weight 230 Lbs

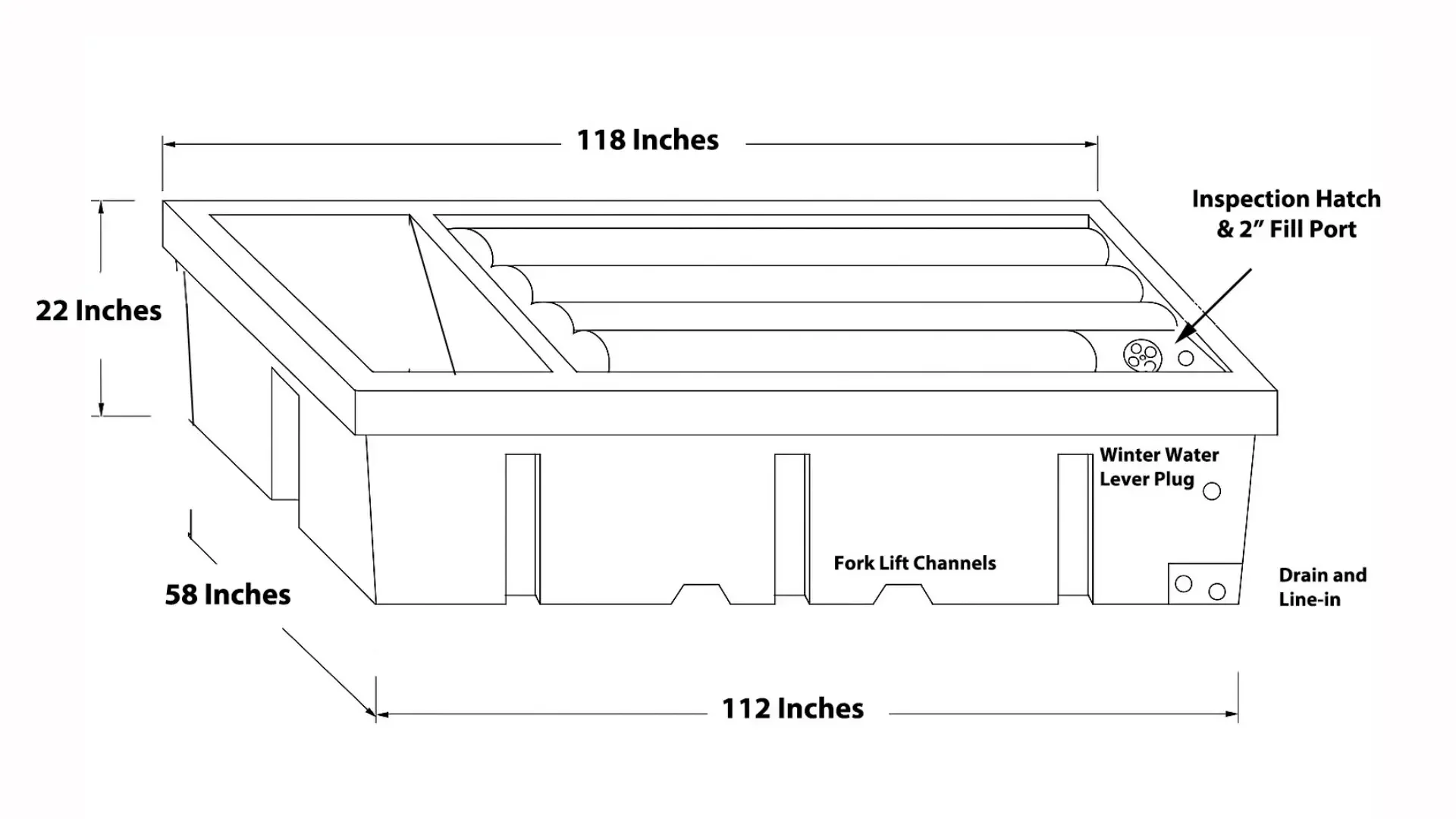

  • Dimensions 118" x 64" x 22"

  • Surface area of 53 sq ft. (33 Gallons per 1" rain)

  • Capacity 650 Gallons

  • Lid covers 80%. Exposed water area is 20% (pertains to evaporation)

  • Escape ramp slope 28 degrees

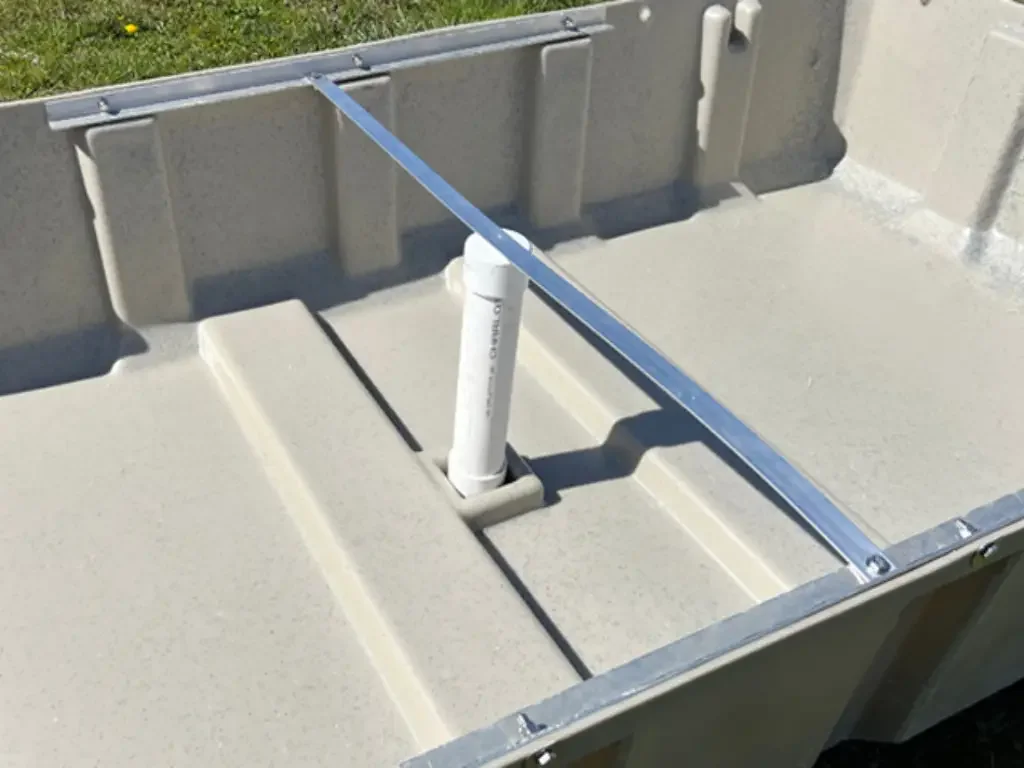

Internal Column and Cross-Bar Support

  • Internal column ensures dome support from the weight of snow and curious animals, such as bears, when walking on the lid.

  • The aluminum cross-bar and frame give extra reinforcement to the side walls and water pressure.

The new DT-645 IG guzzler provides a 645 gallon, in-ground water source for animals at ground level..

The drinking area measures 28" x 50 and is 19" deep.. Deer and elk with larger racks can easily drink over the edge. Smaller animals can use the built-in access ramp to access water.  80% of the tank remains covered to minimize evaporation and keep the water clean.

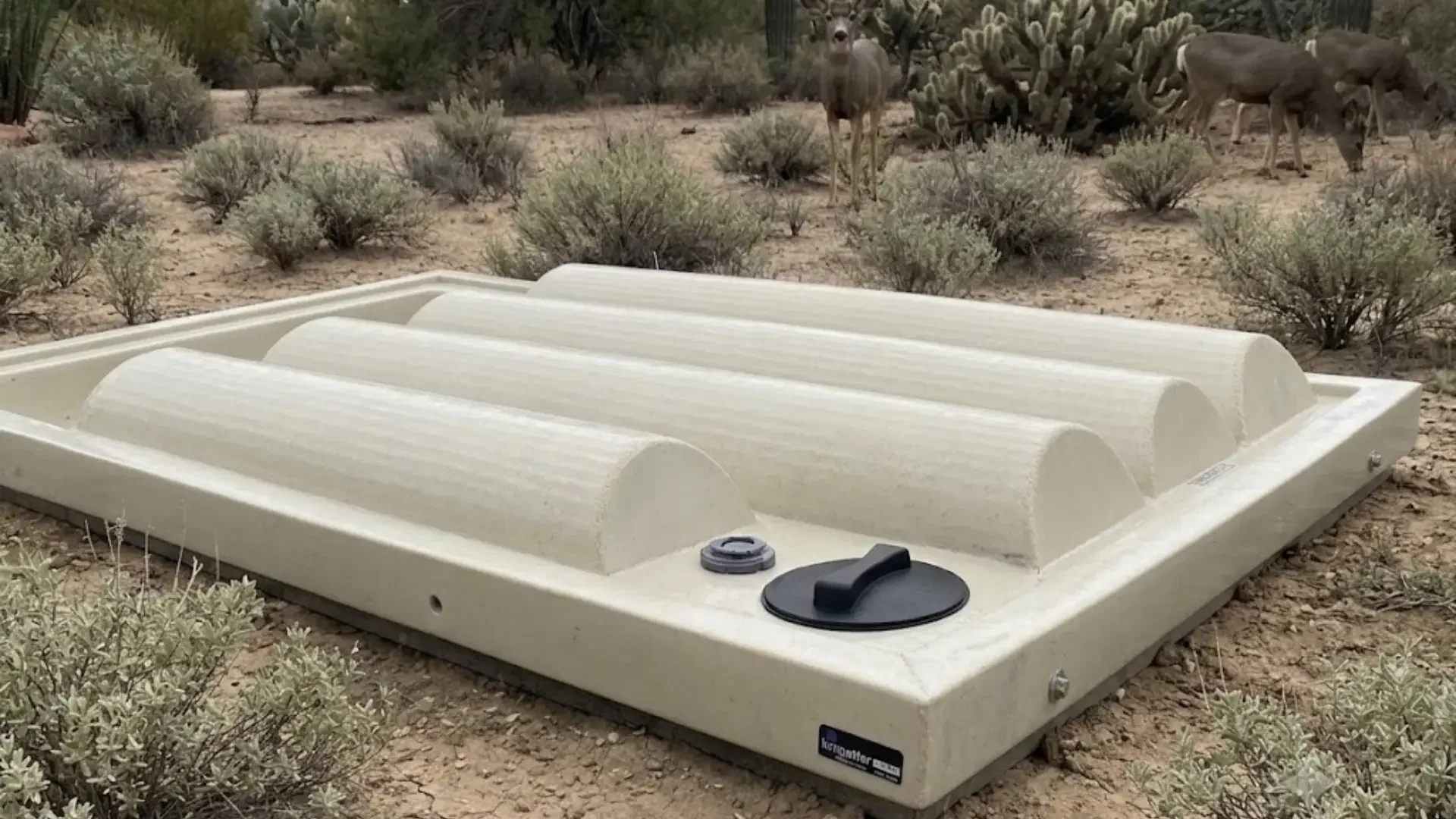

Four integrated domes collect and channel rainwater into the 650-gallon reservoir below. The four dome lid is supported from beneath by PVC column to ensure structural rigidity.  6 bolts lock lid into place.

The 53 sq ft surface area will collect rain at a rate 33 gallons per one inch of rain.  To increase the rain collection surface area, add a collection roof. To see roof plans, go to Support>Collection Roof Plans.  You always have the option to hand fill.  This gravity-feed system is very durable, is freeze tolerant and requires no-float valves.  Since the lid is bolted down, you should consider reducing the water level during long periods of hard freezes to prevent damage from expanding ice.

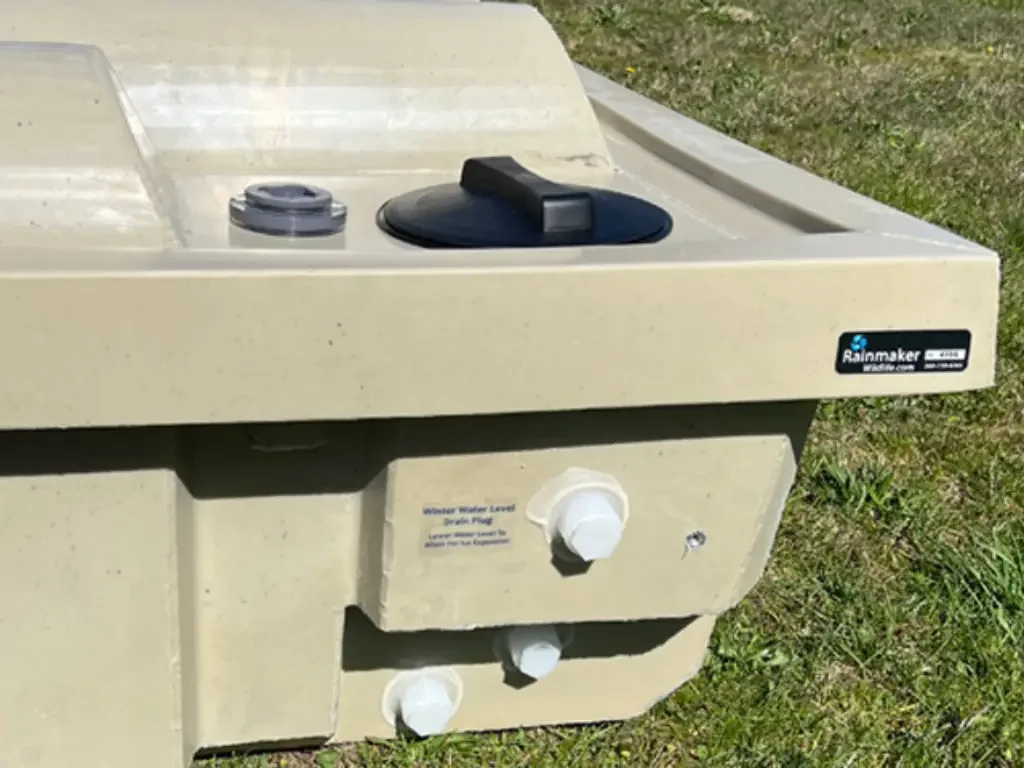

  • Fits conveniently in the bed of a standard pickup. Multiple units nest together to reduce shipping costs.  Includes a 1" drain fitting and 1” line-in fitting.
